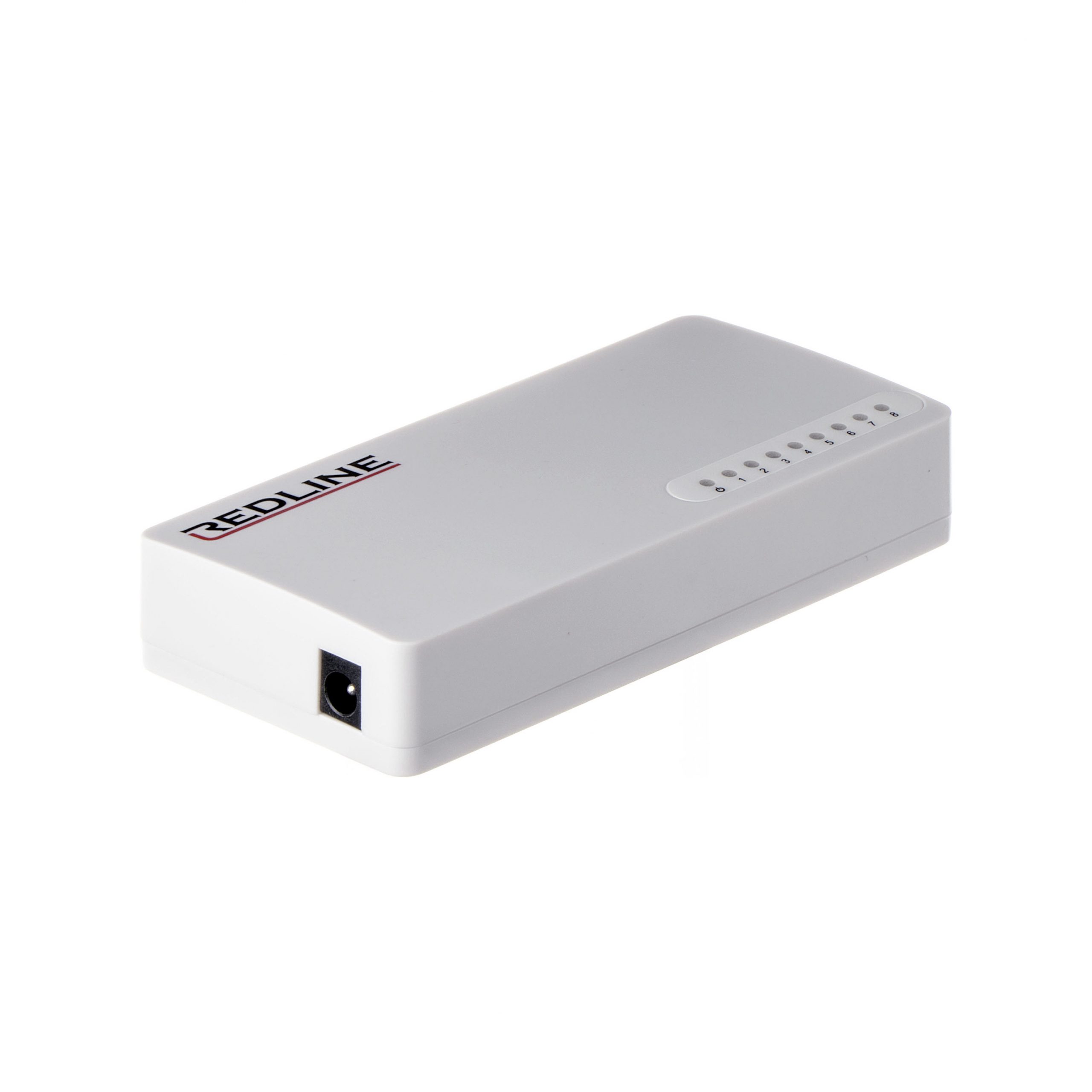

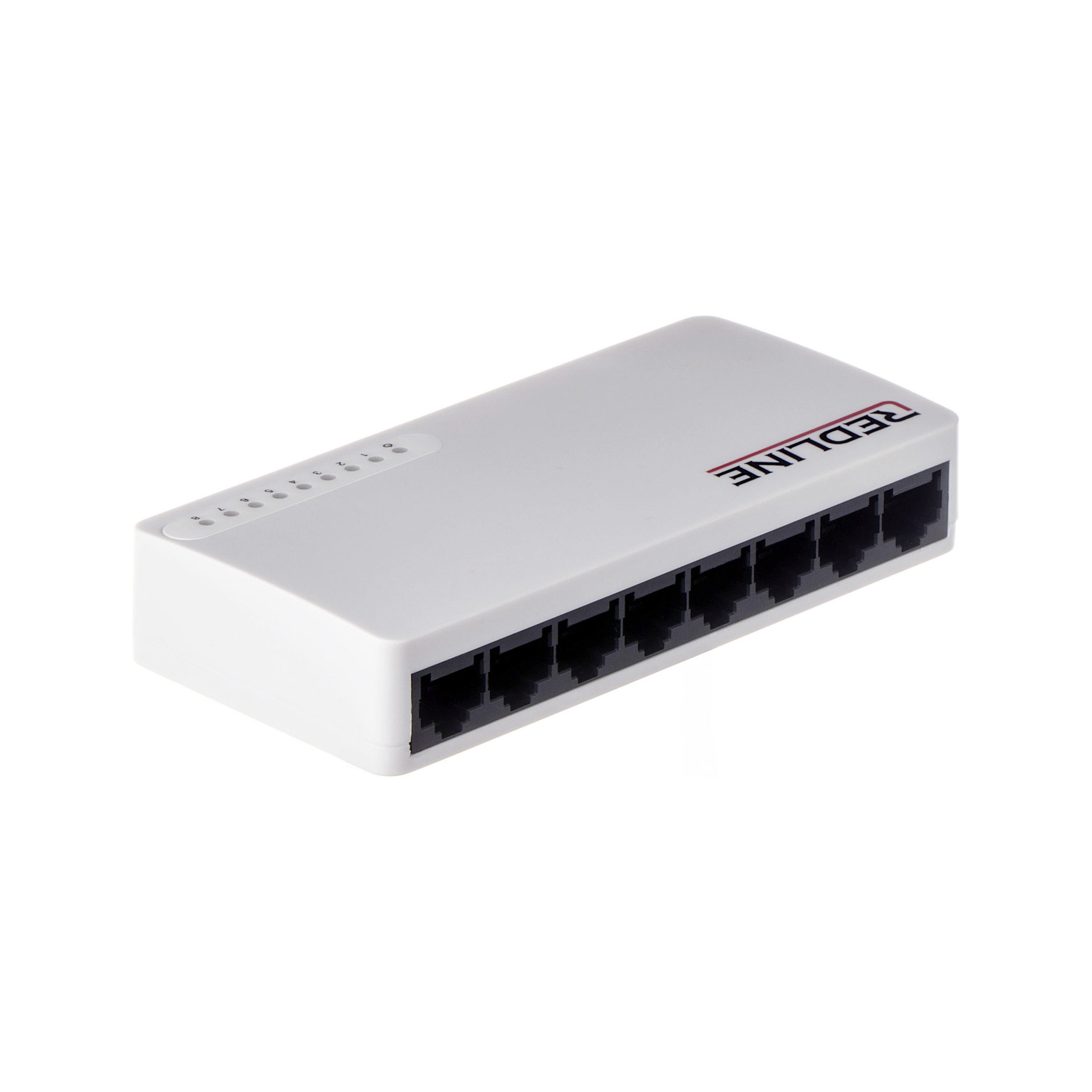

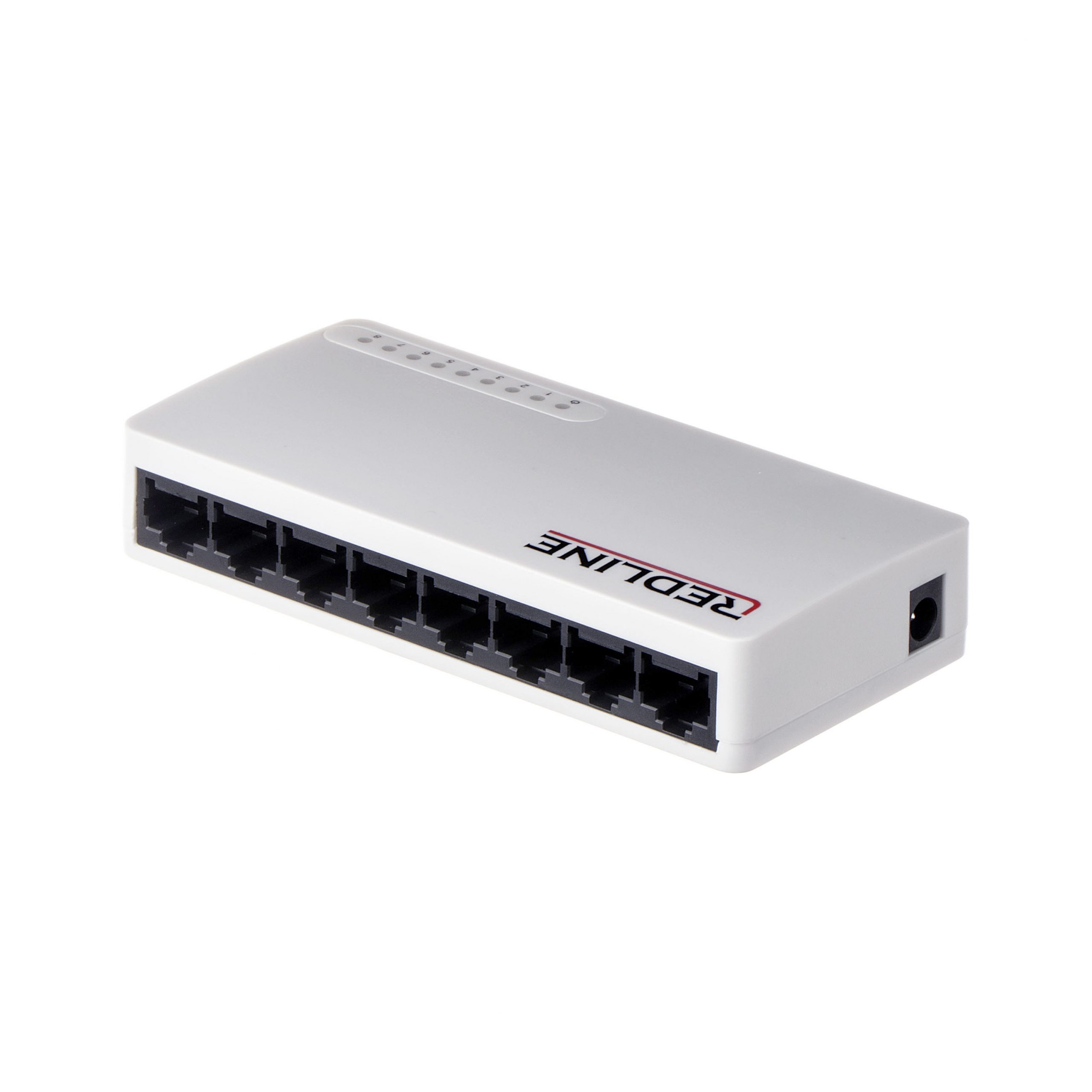

| Model | RL- S1008M |
| Standards | IEEE802.3 10Base-T Ethernet |
| IEEE802.3u 100Base-TX Fast Ethernet | |
| ANSI/IEEE 802.3 Nway Auto-Negotiation | |
| IEEE802.3x Flow control | |
| Chipset | IP178G |
| Frame filtering and forward rate | 10Mbps: 14880pps, 100Mbps: 148800pps |
| Switching capacity | 1G |
| Protocol | CSMA/CD |
| Transfer method | Store-and-forward |
| MAC address learning | Automatically learning, automatically Update |
| Network media(Cable) | 10Base-T:2-Pair UTP category 3, 4, 5,5e,6 cable (maximum 100m), |
| EIA/TIA-568 100Ù STP(maximum 100m), | |
| 100Base-Tx: UTP category 5, 5e cable (maximum 100m), | |
| EIA/TIA-568 100Ù STP (maximum 100m) | |
| Environment | Operating temperature: 0°C~40°C(32 F~104 F), |
| Storage temperature: -40°C~70°C(-40 F~158 F), | |
| Operating humidity: 10%~90% non-condensing, | |
| Storage humidity: 5%~90% non-condensing |
| Title | Languages | Download |
| RL-S1005M, RL-S1008M | English, French, Dutch | Click Here |
