Description
- Specifications
- User Manual
- Product Review Video
- Data Sheet
- Certificate of Conformity
| Network protocol | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI/IEEE Std 802.3 Nway Auto-Negotiation | |
| IEEE 802.3x flow control | |
| Data Transfer | Ethernet: 10Mbps (half duplex),20Mbps (full duplex); |
| Fast Ethernet: 100Mbps (half duplex),200Mbps (full duplex); | |
| Gigabit Ethernet: 2000Mbps (full duplex) | |
| Network Medium | 10Base-T Cat. 3 or above Cat.3 UTP(≤100m) |
| 100Base-TX Cat. 5 UTP(≤100m) | |
| 1000Base-T Cat. 5 or above Cat.5 UTP(≤100m) | |

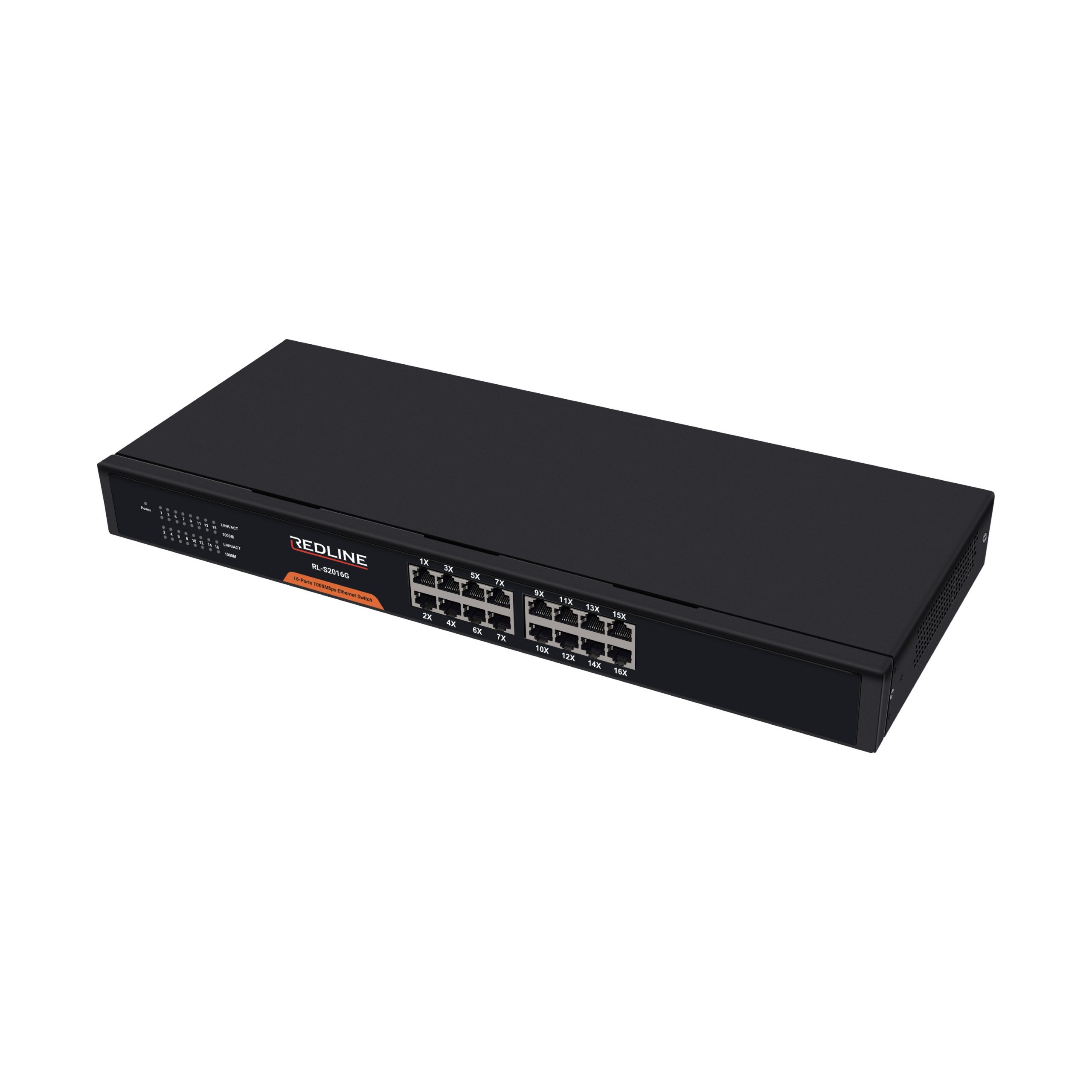

| Number of Ports | 16 10/100/1000M RJ-45 ports |
| UPLINK | Any port (support Auto-MDI/MDIX function) |
| Transmits Method | Store-and-Forward |
| Fibering and Transmitting speed | 10BASE-T 14, 880pps/port |
| 100BASE-TX 148, 800pps/port | |
| 1000BASE-T 1, 488, 000pps/port | |
| Environment | Operating Temperature: 0 C~40 C (32 F~104 F) |
| Storage Temperature: -40 C~70 C (-40 F~158 F) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage humidity: 5%~95% non-condensing | |

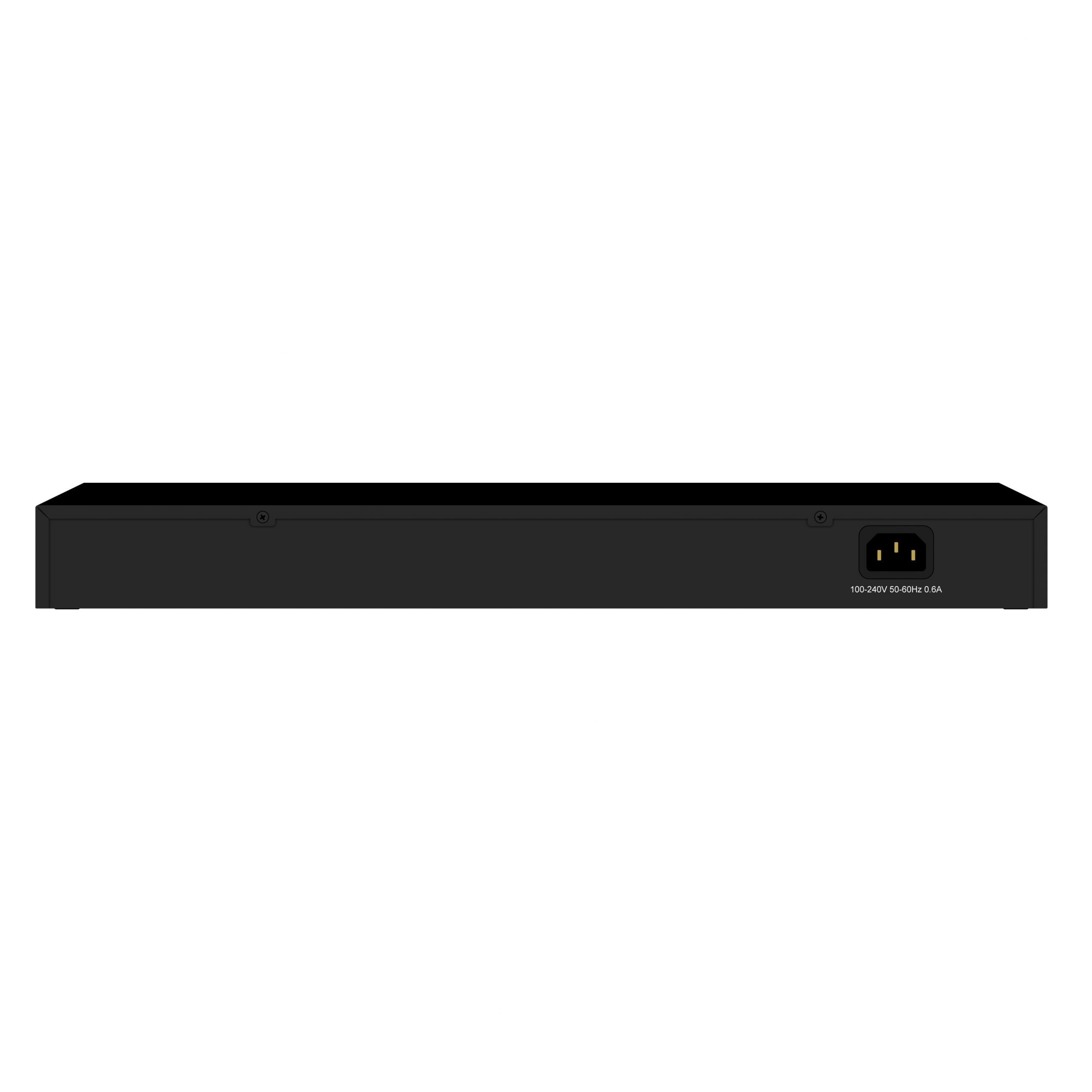

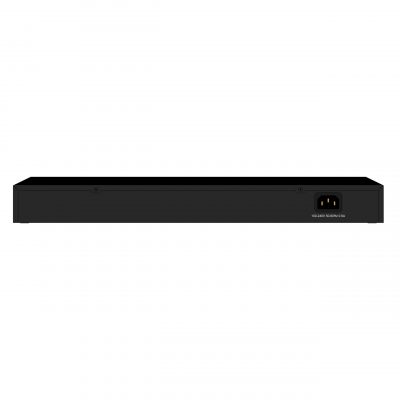

| Power Supply Output | Input 100-240VAC,50/60Hz |
| Title | Language | Download |
| RL-S2016G, RL-S2024G | English, French, Dutch | Click Here |
